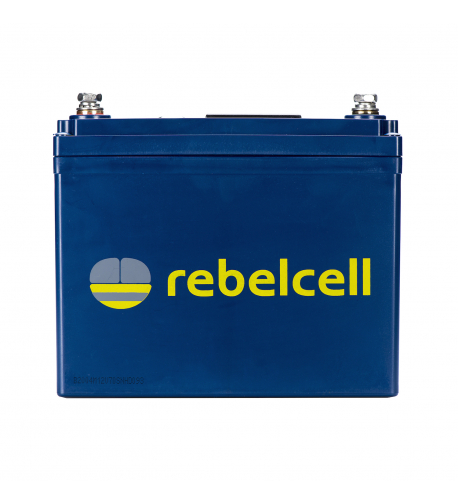

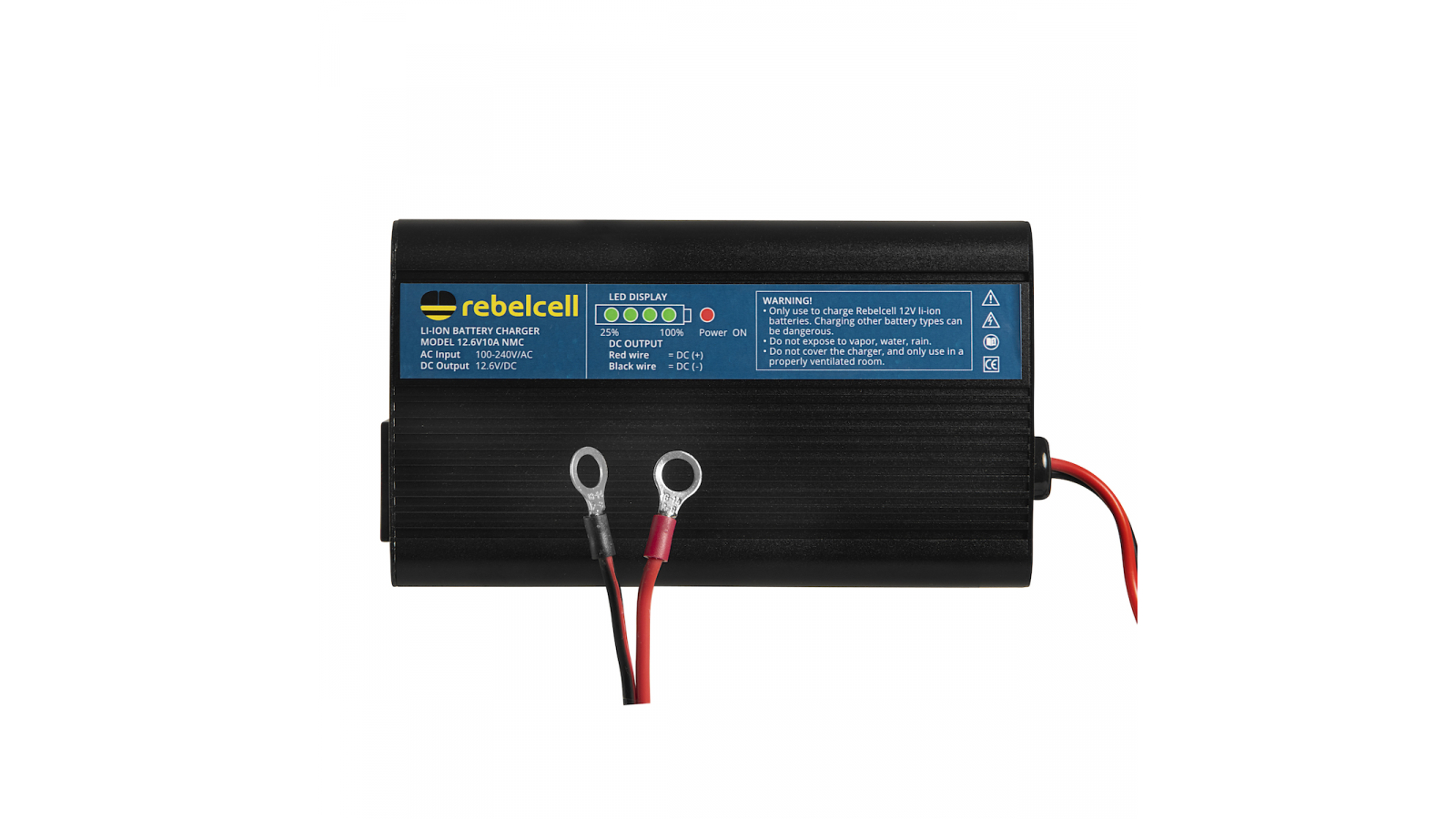

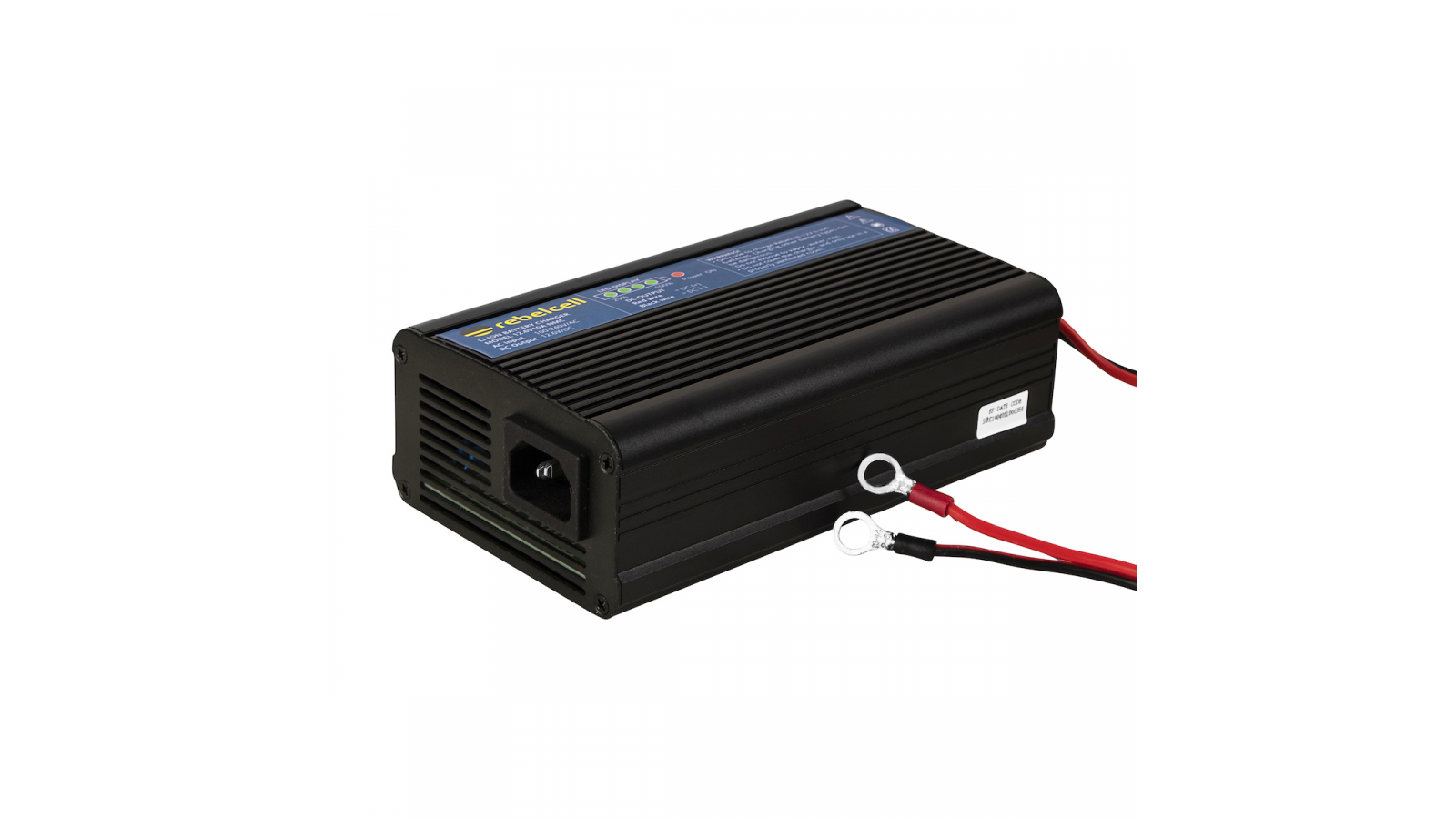

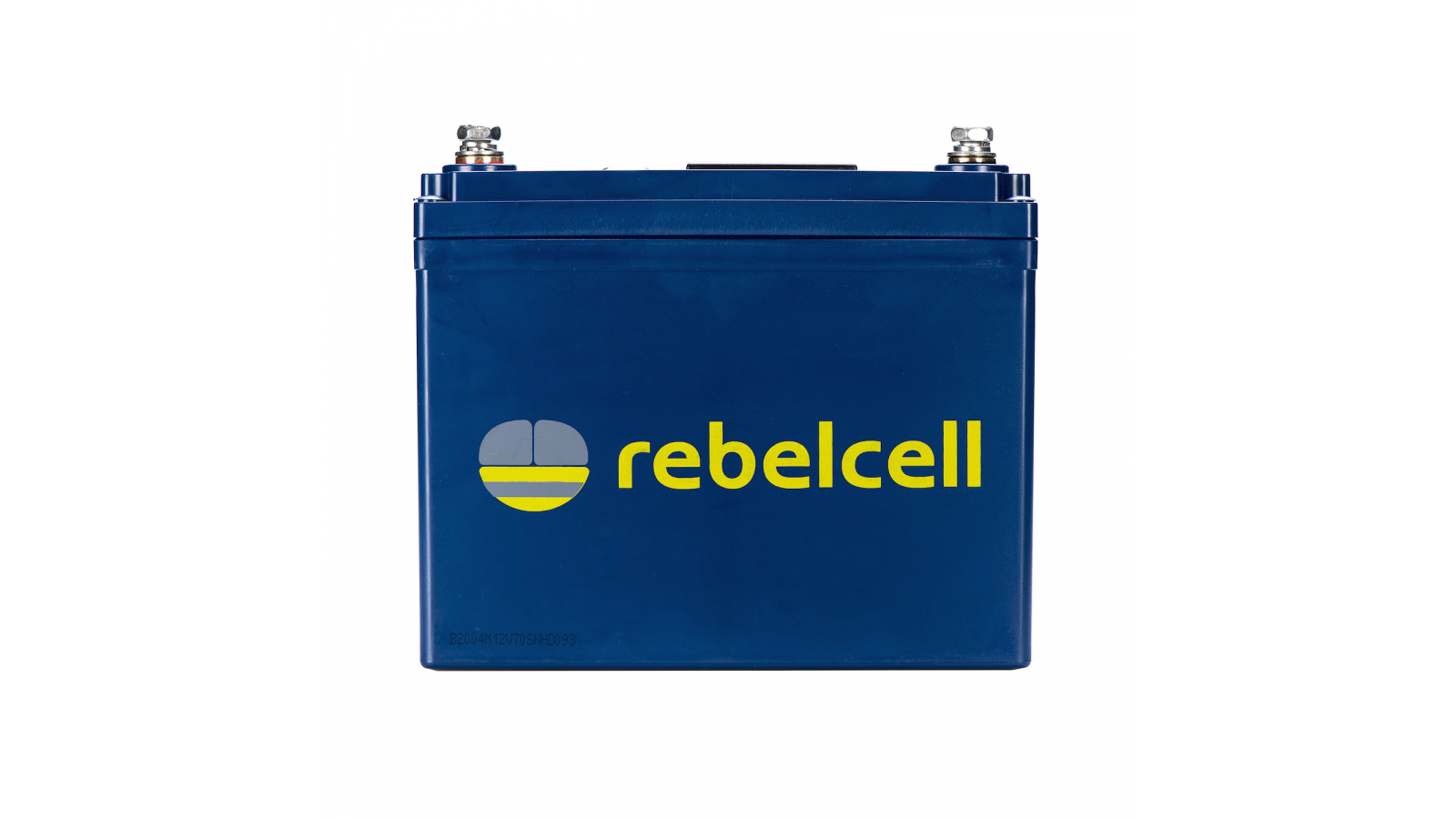

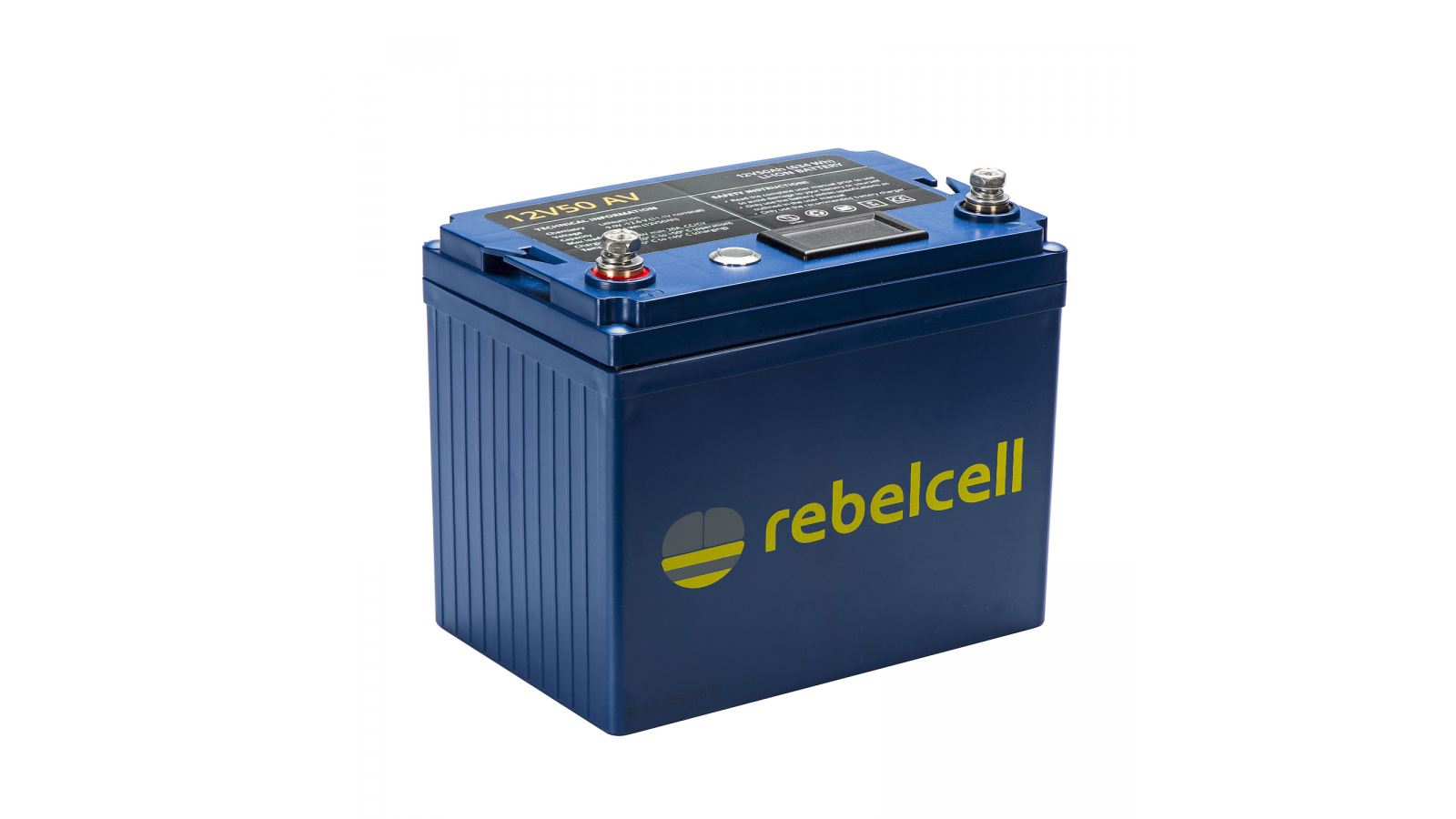

Rebelcell 12V 50A Battery with Charger

7106623691977-3230

New

Rebelcell 12V 50A Li-ion Battery with charger - Shipping only in Hungary!

More details

This product is no longer in stock

276 900 Ft‎

Reviews

No customer comments for the moment.

Write a review

Rebelcell 12V 50A Battery with Charger

Rebelcell 12V 50A Battery with Charger

Rebelcell 12V 50A Li-ion Battery with charger - Shipping only in Hungary!

Write a review

Data sheet

Kayak*****
Boat*****
Ship*****

More info

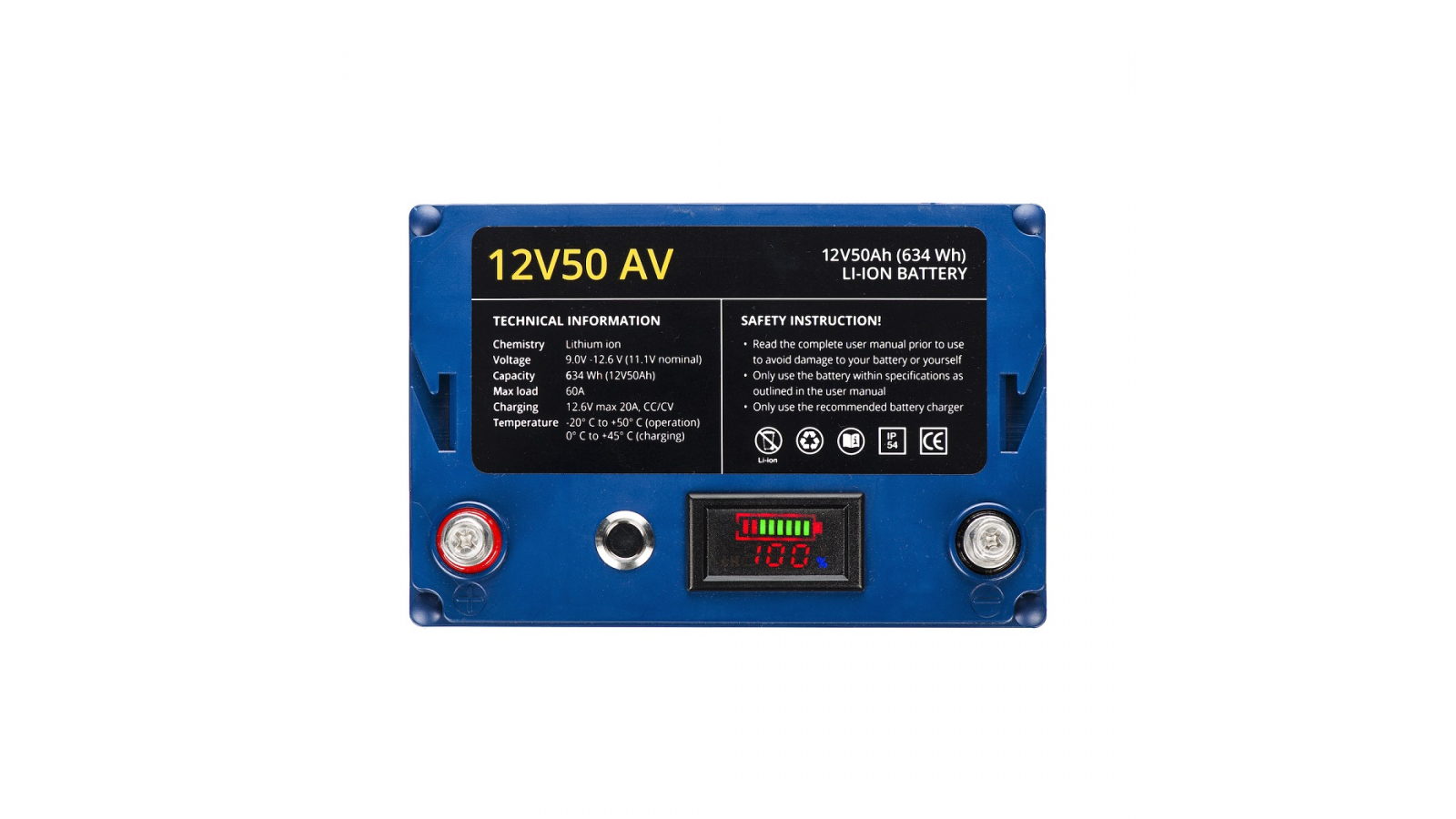

12V50 AV Lithium battery (634Wh) with digital state of charge indicator, for use in following applications:

Angling: 12V trolling engine, depth sounder, waterside energy needs.
E-boating: propulsion of 12V e-motor to 55 Lbs (e.g. electric barges, dinghy etc.).
Recreation: as service battery for sailing yachts, motor boat, mobile home and caravan.



Benefits:

  • Compact and light weight: the battery weighs just 5 kg
  • Top performance: deep discharge (up to 100%) without negative effects on performance or cycle life
  • Ease of use: lightweight and compact, recharged quickly and in between charges (full recharge in 5-6 hours), built-in abuse protection via BMS, Works with standard AC/DC converters.
  • Drop in replacement: compact size 195 x 130 x 155 (mm)
  • Long cycle life: last up to ~ 10 Angling seasons
  • 2 year warranty



  • Our batteries are splashwater proof according to the IP54 standard. They cannot be fully immersed in water or handle heavy rains. To avoid problems use a waterproof battery container and position the battery upright on a slightly elevated level so that it is not continously standing in the water, or water can enter via the top of the battery.
  • Extra (ballast) weight might be required when using with bait boats. Please consult your bait boat specialist for specific advice.
  • If you use a battery carrying case please ensure that NO water (from rain for instance) remains in the battery bag as this can damage the battery. Waterdamage is explicitly excluded from our warranty terms.



Specifcations:

Tecnical specifications12V18 AV battery
ChemistryLithium ion
Voltage11.1V
Capacity (C1-C20)50Ah
EqPb (lead-acid equivalent)up to 105Ah
Nominal energy634 Wh
Maximum continuous discharge 50A
Peak discharge (10 sec)75A
Cycle life  (#charges) (@80%DoD)~1500
Cycle life (#charges) (@100%DoD)~1000
Dimensions195 x 130 x 155 (mm)
Weight~ 5 kG
Energy density~ 104 Wh/kG

Electronics & BMS
Bandwith voltage9.0V ~ 12.6V
Charge temperature0 ~ 45 °C
Discharge temperature-20 ~ 60 °C
Storage temperature0 ~ 45 °C
Charging profileCC/CV
Maximum charge current 20A
Integrated cell balancingyes
Temperature protectionyes
Maximum discharge current protection yes
High voltage protectionyes
Low voltage protectionyes

Protection & Certification
Standards (IEC 529)IP54
CE-certificateyes
Warranty2 years
